Custom Fit

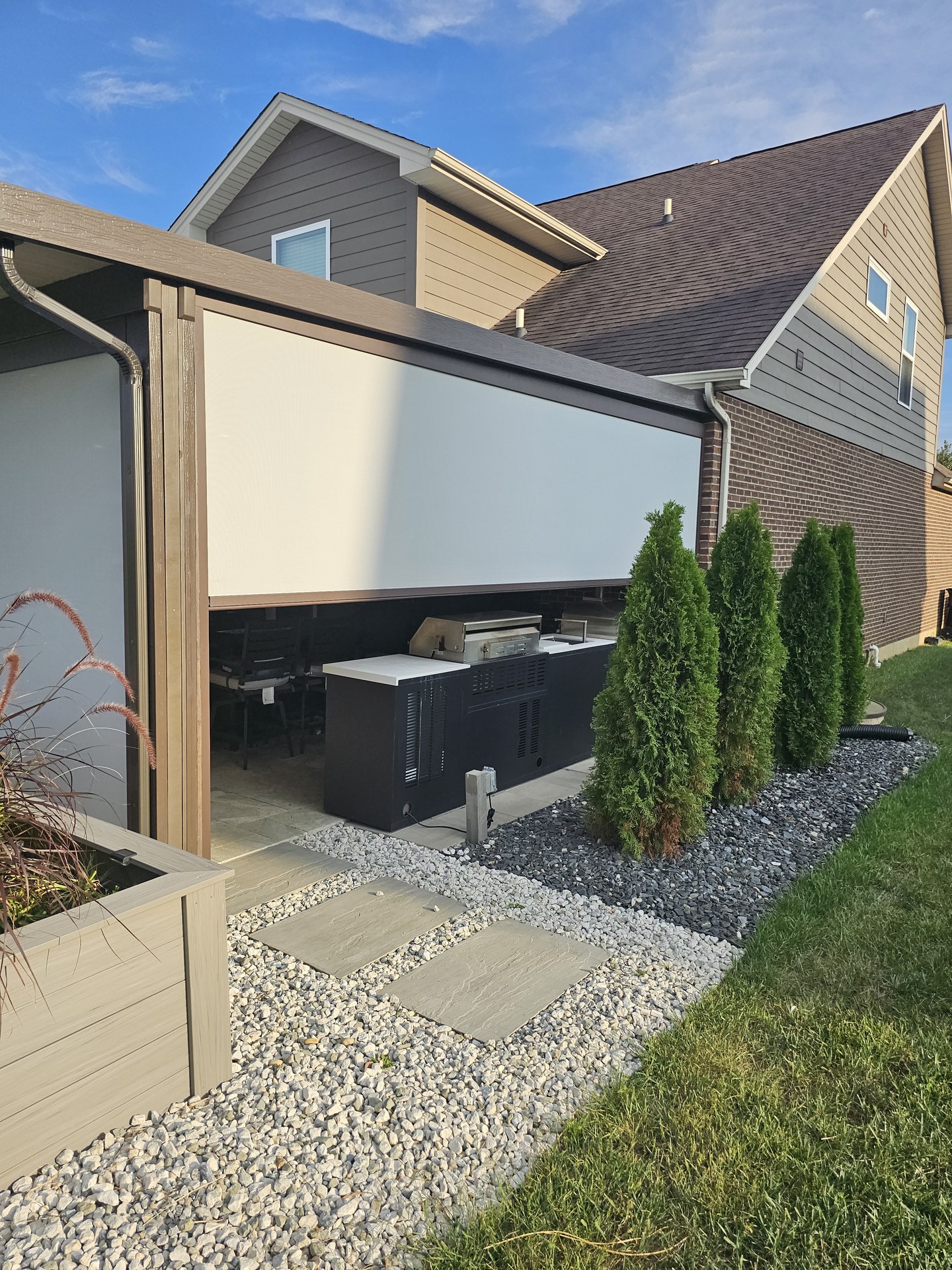

Every screen is built to the finished opening you enter — not a stock width cut down on site.
Our System
Premium Patio Screens. Built to Your Opening. Priced Online. Delivered Direct.
Professional-grade custom-size patio screens — zip-track rails, a concealed roller, and pricing you can see before you order.
Motorized or Manual
Choose hand-operated control from the bottom rail, or a motor concealed in the roller tube with a six-channel remote and app.
Zip-track side guides

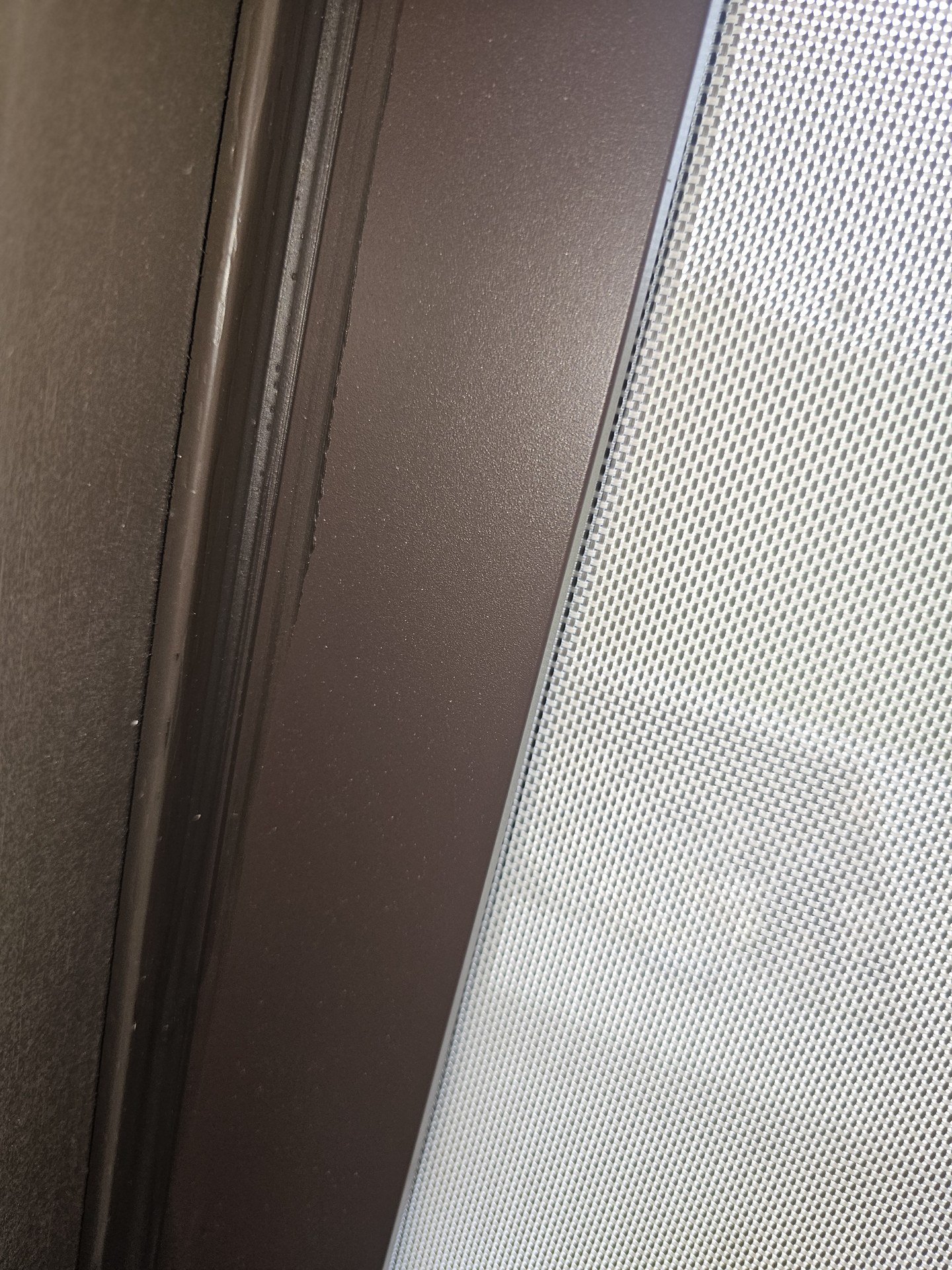

Fabric edges lock into the aluminum side rails so the mesh stays taut instead of billowing like a free-hanging shade.
Smart control

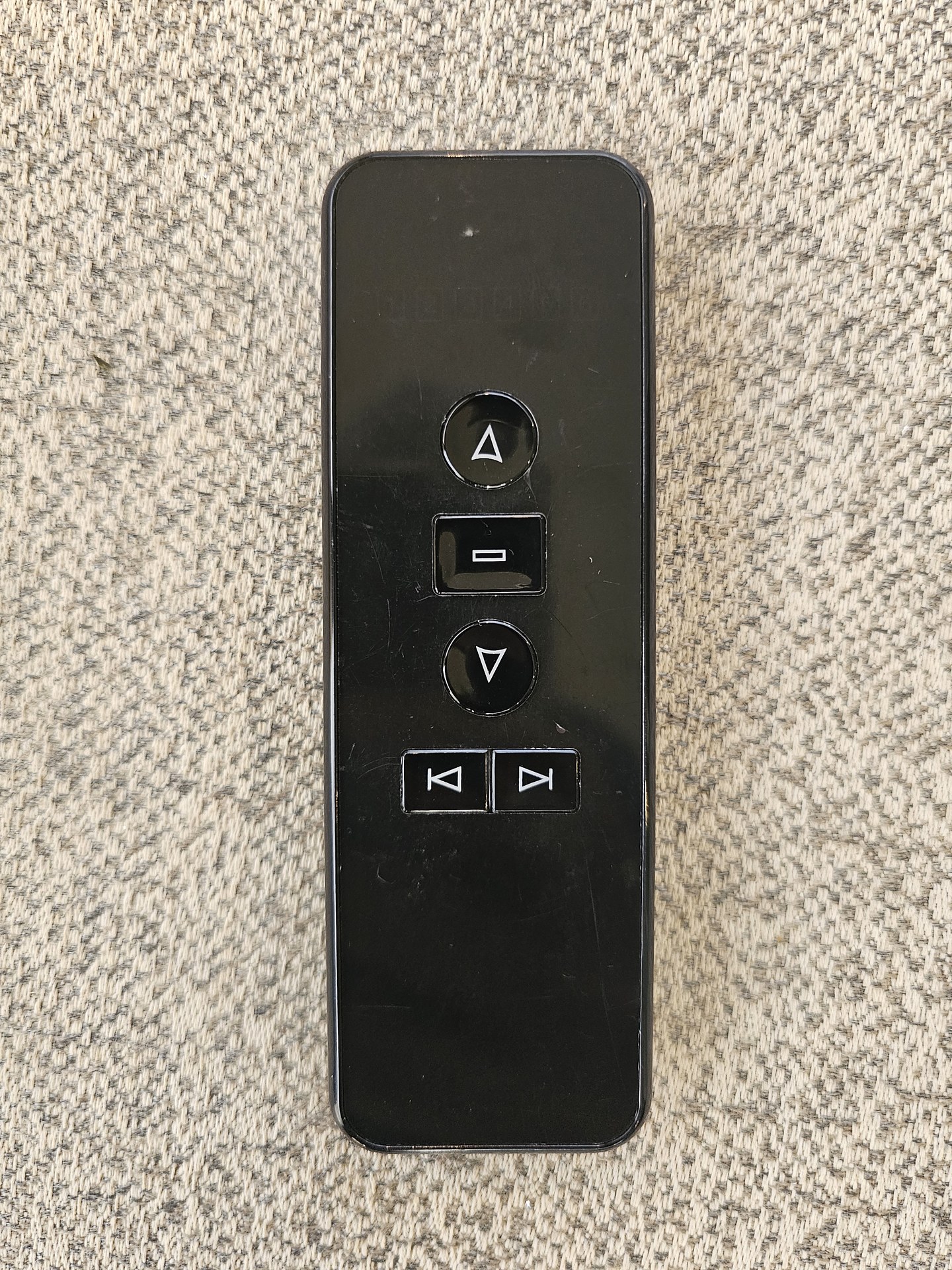

Motorized systems include a six-channel remote and compatible app control. Screens can be operated individually or grouped, with up to six screens per remote.
5-Year Limited Parts Warranty
3-year motor coverage
The system
Explore the system by topic
Hardware, fabric, finishes, and how the package arrives. Minimum: 3 m² (32.3 sq. ft.) per screen. Maximum: 19' 8 1/8" W × 18' 8 3/8" H.
System specifications
Clark screens are zip-track patio systems: the mesh is captured in aluminum side rails, the roller lives in a housing at the head of the opening, and each unit is built to the size you configure. Minimum: 3 m² (32.3 sq. ft.) per screen. Maximum: 19' 8 1/8" W × 18' 8 3/8" H.
- System
- Custom zip-track patio screen: fabric, aluminum frame, roller, and drive packaged as one opening.
- Housing
- Extruded aluminum cassette. The roller and motor sit inside the housing, not as add-on boxes.
- Roller tube
- Reinforced 100 mm tube on every screen.
- Side guides
- Aluminum zip-track rails. Fabric edges stay locked in so the mesh remains taut in outdoor use.
- Bottom bar
- Weighted hem bar for a consistent drop and a clean close at the sill.
- Fabric
- PVC-coated polyester sunscreen mesh. Openness and color are chosen per opening. 0% is maximum coverage, not a full blackout.
- Operation
- Manual control from the bottom rail, or a motorized drive with the motor inside the roller tube.
- Controls
- Motorized systems include a six-channel remote and compatible app control. Screens can be operated individually or grouped, with up to six screens per remote. Choose motor left or right as you face the opening from inside.
- Power
- Motorized screens require a hardwired 120-volt supply. They are not plug-in. Manual screens do not require power.
- Mounting
- Recessed inside the opening or surface-mounted on the face of the structure. Keep housing and side tracks clear of doors, lights, and fixtures.
- Size requirements
- Minimum 3 m² (32.3 sq. ft.) per screen. Maximum 19' 8 1/8" wide × 18' 8 3/8" high. Each screen is checked individually — smaller openings cannot be combined to meet the minimum.
- What’s included
- Screen and frame assembly, the selected manual or motorized drive, and the roller tube. Motorized systems include a six-channel remote and app control. Installation labor is not included.
- Warranty
- 5-year limited parts warranty on non-motor components. 3-year coverage on motors. Replacement parts only; labor is not included.
- Lead time
- After specification review, production typically takes five to seven days. Shipping is then up to 45 days. Made-to-order systems typically arrive about 45 days door-to-door; exact timing is confirmed with the order.
- Delivery
- Door-to-door freight. Each screen is wrapped, foam-cushioned, and braced inside its own carton, then strapped and fastened to a wooden pallet — not shipped loose in a large wooden crate. Every shipment includes a minimum delivery charge. The website shows an estimated amount based on screen count and the width of each screen; freight is confirmed during specification review.
Sunscreen mesh by openness
PVC-coated polyester. Weight and thickness below are Clark’s current values for each weave. Color availability changes with openness.
| Openness | Role | Material | Weight | Thickness |
|---|---|---|---|---|
| 0% | Maximum coverage | 25% polyester / 75% PVC | 630 g/m² | 0.78 mm |
| 1% | High privacy | 22% polyester / 78% PVC | 510 g/m² | 0.66 mm |
| 3% | Privacy + visibility | 25% polyester / 75% PVC | 610 g/m² | 0.87 mm |
| 5% | Balanced — recommended | 25% polyester / 75% PVC | 540 g/m² | 0.70 mm |
| 10% | Enhanced visibility | 25% polyester / 75% PVC | 430 g/m² | 0.65 mm |
| 30% | Maximum openness | 25% polyester / 75% PVC | 300 g/m² | 0.55 mm |
